/////-----------------------------------*wonderful distribution line*------------------------------------//
#include <LiquidCrystal.h>

const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

int pulsePin = A0;                 // Pulse Sensor purple wire connected to analog pin A0
int blinkPin = 13;                // pin to blink led at each beat

// Volatile Variables, used in the interrupt service routine!
volatile int BPM;                   // int that holds raw Analog in 0. updated every 2mS
volatile int Signal;                // holds the incoming raw data
volatile int IBI = 600;             // int that holds the time interval between beats! Must be seeded!
volatile boolean Pulse = false;     // "True" when User's live heartbeat is detected. "False" when not a "live beat".
volatile boolean QS = false;        // becomes true when Arduoino finds a beat.

static boolean serialVisual = true;   // Set to 'false' by Default.  Re-set to 'true' to see Arduino Serial Monitor ASCII Visual Pulse

volatile int rate[10];                      // array to hold last ten IBI values
volatile unsigned long sampleCounter = 0;          // used to determine pulse timing
volatile unsigned long lastBeatTime = 0;           // used to find IBI
volatile int P = 512;                      // used to find peak in pulse wave, seeded
volatile int T = 512;                     // used to find trough in pulse wave, seeded
volatile int thresh = 525;                // used to find instant moment of heart beat, seeded
volatile int amp = 100;                   // used to hold amplitude of pulse waveform, seeded
volatile boolean firstBeat = true;        // used to seed rate array so we startup with reasonable BPM
volatile boolean secondBeat = false;      // used to seed rate array so we startup with reasonable

int gobalvariable = BPM;

//-----------------------------------*wonderful distribution line*-------------------------------------/////

int over_thresh = 0;  //heartbeat is too low >140

// button
int button = 6;

// motor setting
int m1 = 8;
int m2 = 7;
int ENA = 6;
int Speed = 50;

// motor is running
int is_running = 0;
unsigned long timestamp;

// suppose 2nd task
unsigned long timestamp2;

void setup()
{
  /////-------------------*wonderful distribution line*--------------------//

  pinMode(blinkPin, OUTPUT);        // pin that will blink to your heartbeat!
  Serial.begin(115200);             // we agree to talk fast!
  interruptSet();                 // sets up to read Pulse Sensor signal every 2mS
  // IF YOU ARE POWERING The Pulse Sensor AT VOLTAGE LESS THAN THE BOARD VOLTAGE,
  // UN-COMMENT THE NEXT LINE AND APPLY THAT VOLTAGE TO THE A-REF PIN
  //   analogReference(EXTERNAL);
  lcd.begin(16, 2);
  lcd.clear();

  //-------------------*wonderful distribution line*--------------------/////

  pinMode(m1, OUTPUT);
  pinMode(m2, OUTPUT);
  pinMode(button,INPUT_PULLUP);
  Serial.begin(9600);

}

void loop()
{
  // 2nd task //sensor heartbeatcode
  if ( millis() - timestamp2 >= 20 ) { //delay number
    timestamp2 = millis();
    //digitalWrite( 13, !digitalRead(13));

    /////-------------------*wonderful distribution line*--------------------///
    serialOutput();

    if (QS == true) // A Heartbeat Was Found
    {
      // BPM and IBI have been Determined
      // Quantified Self "QS" true when arduino finds a heartbeat
      serialOutputWhenBeatHappens(); // A Beat Happened, Output that to serial.
      QS = false; // reset the Quantified Self flag for next time
    }

    //delay(20); //  take a break
    ///---------------------*wonderful distribution line*------------------/////
  }

  int over_thresh_now;
  if ( gobalvariable >= 140 ) { // larger than(heartbeat_number)
    over_thresh_now = 1;        //digitalread=1(high)
  } else {
    over_thresh_now = 0;        //digitalread=0(Low)
  }

    // test if state has changed
    if ( over_thresh_now != over_thresh ) {
      if ( over_thresh_now ) {      // activate
        Serial.println("On");
        timestamp = millis();       // remember the time when the motor is turned on
        digitalWrite( m1, HIGH);
        digitalWrite( m2, LOW);
        analogWrite(ENA, Speed);
        is_running = 1; // record the state of motor is on
      } else { // deactivate
        Serial.println("Off");
        digitalWrite( m1, LOW);
        digitalWrite( m2, LOW);
      }
      over_thresh = over_thresh_now;
    }

  if (digitalRead(button) == HIGH){
    timestamp = millis();
    digitalWrite(m2, HIGH);
    digitalWrite(m1, LOW);
    is_running =2;
  }

  if ( is_running == 1) { // motor is on
    if ( millis() - timestamp >= 3500 ) { // 2.5 seconds is passed
      digitalWrite(m1, LOW);
      digitalWrite(m2, LOW);
      is_running = 0;
    }
  }

  //button is on
  if ( is_running == 2 ) { // motor is on
    if (millis() - timestamp >= 6000) {
      digitalWrite( m1, LOW);
      digitalWrite( m2, LOW);
      analogWrite(ENA, Speed);
    }

  }

}

/////-------------------*wonderful distribution line*--------------------///
void interruptSet()
{
  // Initializes Timer2 to throw an interrupt every 2mS.
  TCCR2A = 0x02;     // DISABLE PWM ON DIGITAL PINS 3 AND 11, AND GO INTO CTC MODE
  TCCR2B = 0x06;     // DON'T FORCE COMPARE, 256 PRESCALER
  OCR2A = 0X7C;      // SET THE TOP OF THE COUNT TO 124 FOR 500Hz SAMPLE RATE
  TIMSK2 = 0x02;     // ENABLE INTERRUPT ON MATCH BETWEEN TIMER2 AND OCR2A
  sei();             // MAKE SURE GLOBAL INTERRUPTS ARE ENABLED
}

void serialOutput()
{ // Decide How To Output Serial.
  if (serialVisual == true)
  {
    arduinoSerialMonitorVisual('-', Signal);   // goes to function that makes Serial Monitor Visualizer
  }
  else
  {
    sendDataToSerial('S', Signal);     // goes to sendDataToSerial function
  }
}

void serialOutputWhenBeatHappens()
{
  if (serialVisual == true) //  Code to Make the Serial Monitor Visualizer Work
  {
    lcd.clear();
    Serial.print(" Heart-Beat Found ");  //ASCII Art Madness
    Serial.print("BPM: ");
    Serial.println(BPM);

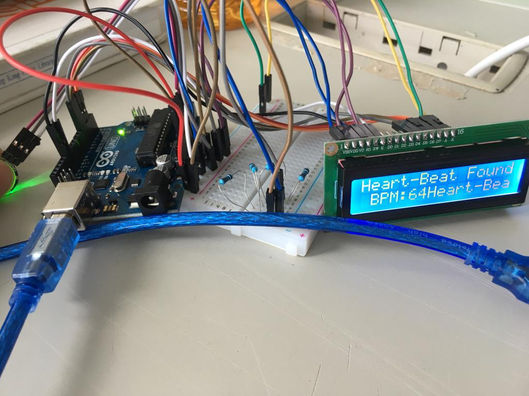

    lcd.print("Heart-Beat Found ");
    lcd.setCursor(1, 1);
    lcd.print("BPM: ");
    lcd.setCursor(5, 1);
    lcd.print(BPM);
    delay(300);
    //lcd.clear();

    gobalvariable = BPM;

  }
  else
  {
    sendDataToSerial('B', BPM);  // send heart rate with a 'B' prefix
    sendDataToSerial('Q', IBI);  // send time between beats with a 'Q' prefix
  }
}

void arduinoSerialMonitorVisual(char symbol, int data )
{
  const int sensorMin = 0;      // sensor minimum, discovered through experiment
  const int sensorMax = 1024;    // sensor maximum, discovered through experiment
  int sensorReading = data; // map the sensor range to a range of 12 options:
  int range = map(sensorReading, sensorMin, sensorMax, 0, 11);
  // do something different depending on the
  // range value:
}

void sendDataToSerial(char symbol, int data )
{
  Serial.print(symbol);
  Serial.println(data);
}

ISR(TIMER2_COMPA_vect) //triggered when Timer2 counts to 124
{
  cli();                                      // disable interrupts while we do this
  Signal = analogRead(pulsePin);              // read the Pulse Sensor
  sampleCounter += 2;                         // keep track of the time in mS with this variable
  int N = sampleCounter - lastBeatTime;       // monitor the time since the last beat to avoid noise
  //  find the peak and trough of the pulse wave
  if (Signal < thresh && N > (IBI / 5) * 3) // avoid dichrotic noise by waiting 3/5 of last IBI
  {
    if (Signal < T) // T is the trough
    {
      T = Signal; // keep track of lowest point in pulse wave
    }
  }

  if (Signal > thresh && Signal > P)
  { // thresh condition helps avoid noise
    P = Signal;                             // P is the peak
  }                                        // keep track of highest point in pulse wave

  //  NOW IT'S TIME TO LOOK FOR THE HEART BEAT
  // signal surges up in value every time there is a pulse
  if (N > 250)
  { // avoid high frequency noise
    if ( (Signal > thresh) && (Pulse == false) && (N > (IBI / 5) * 3) )
    {
      Pulse = true;                               // set the Pulse flag when we think there is a pulse
      digitalWrite(blinkPin, HIGH);               // turn on pin 13 LED
      IBI = sampleCounter - lastBeatTime;         // measure time between beats in mS
      lastBeatTime = sampleCounter;               // keep track of time for next pulse

      if (secondBeat)
      { // if this is the second beat, if secondBeat == TRUE
        secondBeat = false;                  // clear secondBeat flag
        for (int i = 0; i <= 9; i++) // seed the running total to get a realisitic BPM at startup
        {
          rate[i] = IBI;
        }
      }

      if (firstBeat) // if it's the first time we found a beat, if firstBeat == TRUE
      {
        firstBeat = false;                   // clear firstBeat flag
        secondBeat = true;                   // set the second beat flag
        sei();                               // enable interrupts again
        return;                              // IBI value is unreliable so discard it
      }
      // keep a running total of the last 10 IBI values
      word runningTotal = 0;                  // clear the runningTotal variable

      for (int i = 0; i <= 8; i++)
      { // shift data in the rate array
        rate[i] = rate[i + 1];                // and drop the oldest IBI value
        runningTotal += rate[i];              // add up the 9 oldest IBI values
      }

      rate[9] = IBI;                          // add the latest IBI to the rate array
      runningTotal += rate[9];                // add the latest IBI to runningTotal
      runningTotal /= 10;                     // average the last 10 IBI values
      BPM = 60000 / runningTotal;             // how many beats can fit into a minute? that's BPM!
      QS = true;                              // set Quantified Self flag
      // QS FLAG IS NOT CLEARED INSIDE THIS ISR
    }
  }

  if (Signal < thresh && Pulse == true)
  { // when the values are going down, the beat is over
    digitalWrite(blinkPin, LOW);           // turn off pin 13 LED
    Pulse = false;                         // reset the Pulse flag so we can do it again
    amp = P - T;                           // get amplitude of the pulse wave
    thresh = amp / 2 + T;                  // set thresh at 50% of the amplitude
    P = thresh;                            // reset these for next time
    T = thresh;
  }

  if (N > 2500)
  { // if 2.5 seconds go by without a beat
    thresh = 512;                          // set thresh default
    P = 512;                               // set P default
    T = 512;                               // set T default
    lastBeatTime = sampleCounter;          // bring the lastBeatTime up to date
    firstBeat = true;                      // set these to avoid noise
    secondBeat = false;                    // when we get the heartbeat back
  }

  sei();                                   // enable interrupts when youre done!
}// end isr
///---------------------*wonderful distribution line*------------------/////
